Spacer Features

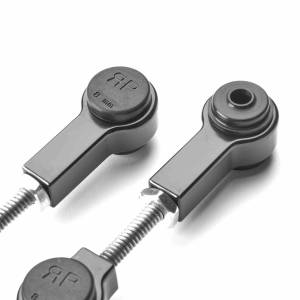

Adjustable Link Features
Why we made this package
The Revel Performance Basic Lift package is designed to give your truck a near-effortless height advantage over other trucks on the road, without the cost of a full-scale lift kit. This package combines Revel’s marquee adjustable air suspension links (Revel Links) along with a 2.5” lifting spacer to provide a comfortable ride. Together, this innovative combination offers up to 2.5” inches of additional lift that isn’t available anywhere else.
The Basic Lift package is designed to give you the freedom to use your truck the way you want it, by retaining all off-road air functions for street cruising or muddy off-road adventures.
How it works
Lifting spacers are designed to be compatible with stock suspension components, and act as a lifting ‘block’ to increase the height of the chassis from the axles.
Revel Links trigger a change in voltage within Ram truck's factory air suspension system. When the length of links is shortened on the front and lengthened on the rear, the truck's onboard computer registers a ride height below factory settings and compensates by generating up to an additional 2.5" of lift. Sounds complicated, but it's actually really simple.
Compatibility

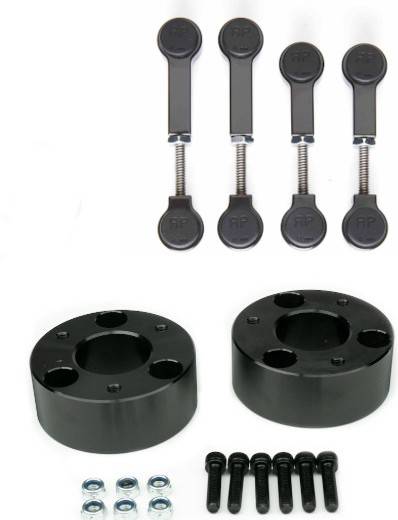

Package contents
Installing four Revel Links will help level the truck and reduce payload errors.
Specs
New Option Pre-Adjustment
We will ship the adjustable links pre-set to provide a level truck. Two options are available depending on your truck. For Rebel Trucks or trucks with the factory off road package rear links may not be required and can be used for fine adjustments if needed.
Disclaimers
Prior to installation, please read all instructions and contact Revel Performance with any questions. If in doubt, both products should be installed by a licensed mechanic certified to work on your vehicle.
Although lifting spacers do not specifically state their compatibility with Ram trucks equipped with air suspension, when used in combination with Revel Links they install and function properly on all air ride trucks 2013-2026. If instructions were included with the spacers do not follow them and use the Revel Basic Lift Package Installation Instructions.
Lifting above 2.5” with Revel Links may result in a payload warning and restrict the use of the higher off road dash settings. An alignment may be required to maximize performance of the links while using OR2 as your normal ride height.
Use at your own risk. Revel Performance Inc., it’s distributors, employees, partners, or other contracted entities are not liable for any loss, damage, or injury due to improper installation or usage.
All sales are final. No returns or refunds.
