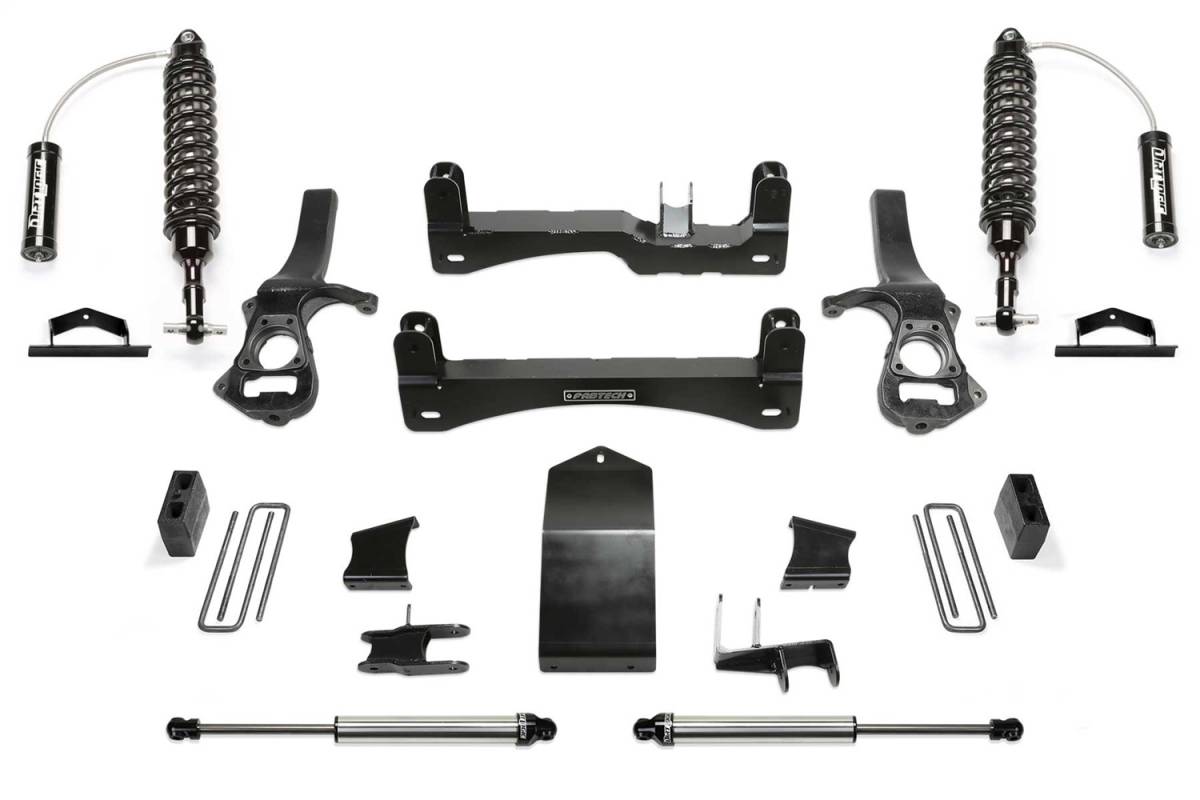

2019 - 2022 GMC, Chevrolet Fabtech Performance Lift System w/Shocks - K1141DL

Suspension Lift Kit

K1141DL
  • Performance Lift System W/ Shocks
  • 4 in. Lift
  • W/ Front Dirt Logic 2.5 Resi Coilovers
  • Rear Dirt Logic 2.25 Shocks
Limited Supply: only 1 remaining
Availability: Oversize handling fees will apply
Pricing: $4,351.92
Qty:

Description

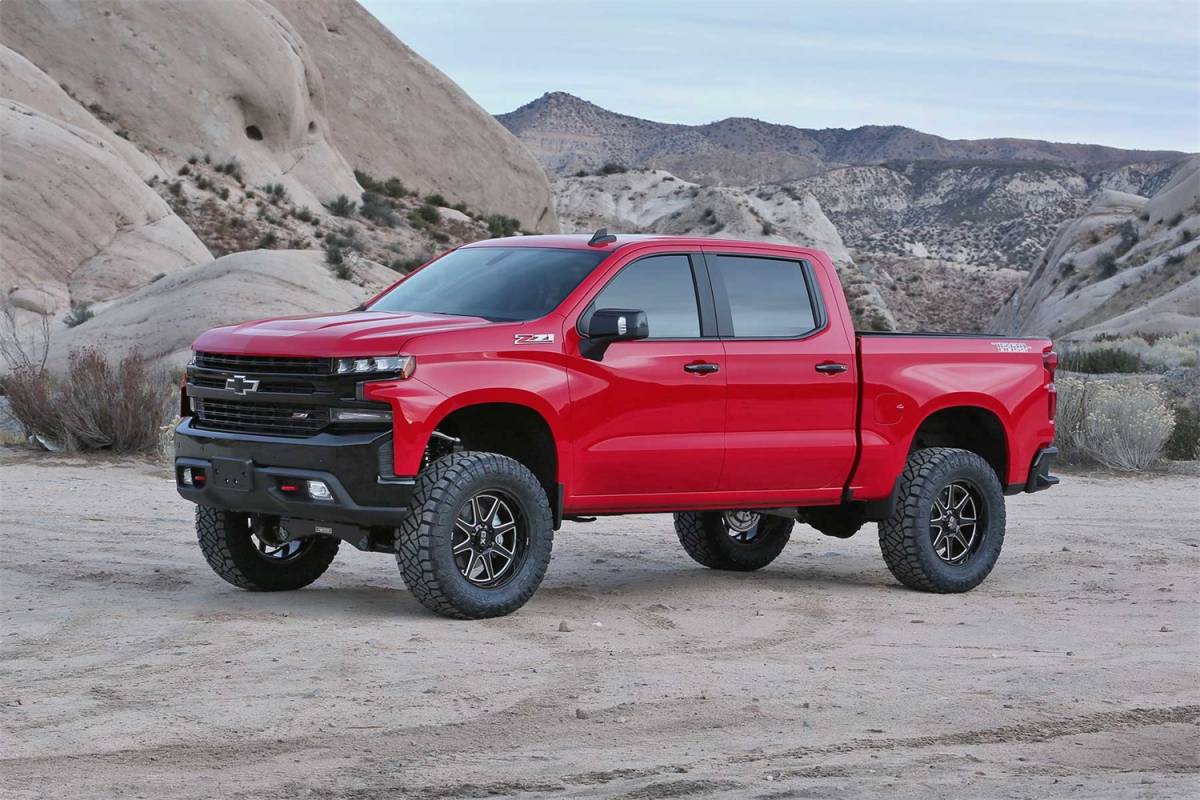

The Chevy Trail Boss and GMC AT4 both have a factory 2" lift compared to other GM 1500 trucks of the same year model. Fabtech's suspension system for these two trucks provide a 4" lift height on top of the factory 2" lift for clearance of 35" tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4" system, the truck will sit at the same height as a 1500 with a 6" suspension and 35" tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech's proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished by removing the factory 2" block and replacing it with a 5" block and u-bolt system. Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.

  • Everything You Will Need To Lift Your Vehicle
  • No Driveshaft Change Required For Auto Trac
  • Increased Caster For More Control
  • Retains Factory Steering Centerlink
  • Retains Factory Upper Control Arms
  • Quick No Weld Installation
  • Allows Use Of Stock Tires And Wheels
