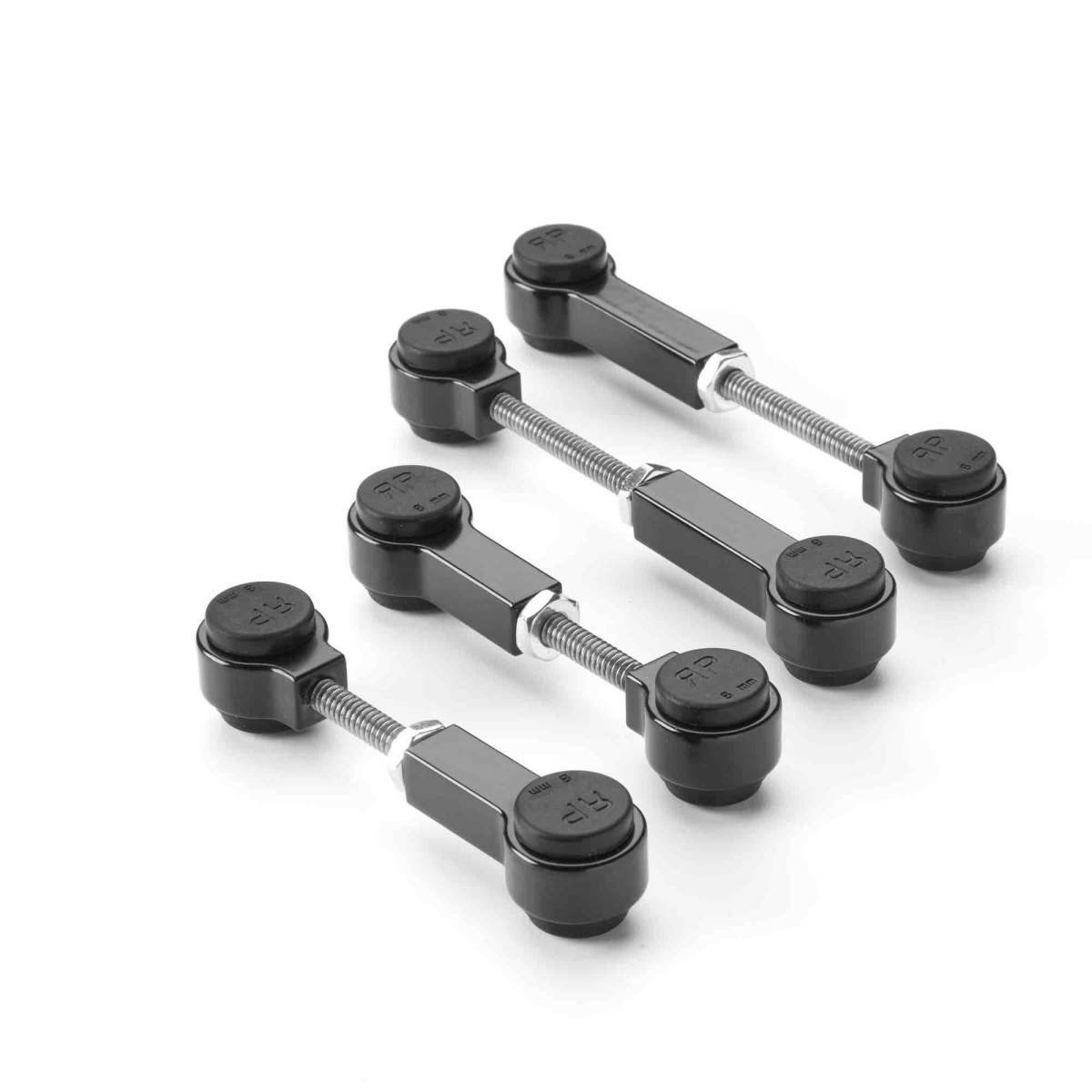

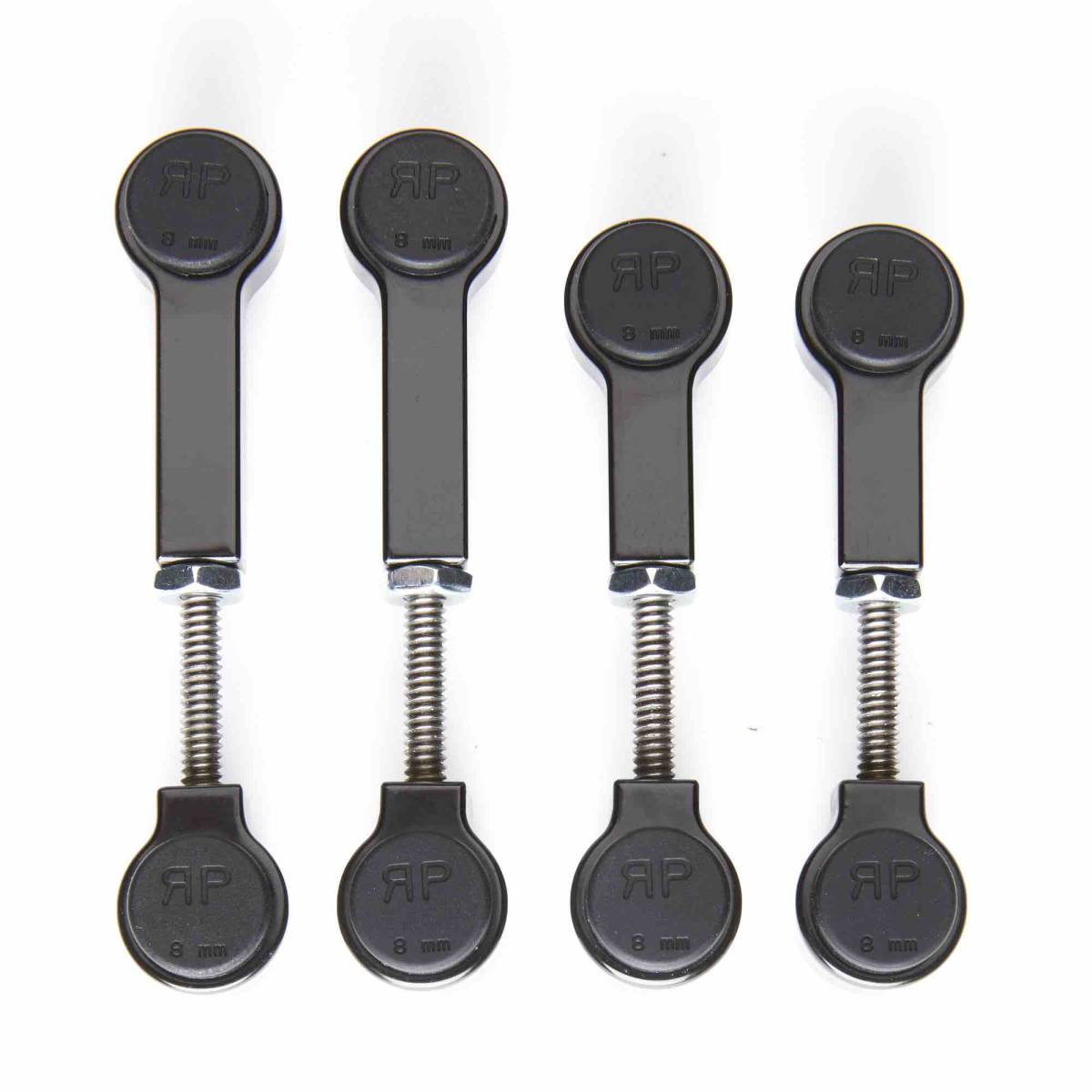

Revel's Adjustable Air Suspension Links replace the stock sensor links to alter the ride height as much as 2.5", while maintaining functionality of the truck's suspension modes. The links utilize the factory ball studs for easy installation and require no alterations or cutting. Don't like the look? Totally cool. Revel Links can be easily removed at any time.
Compatibility
2019-2026 Ram 1500 with factory air suspension
IMPORTANT – Ram Rebel and Off Road Package (ORP) models: Adjustable links alone will not properly level these trucks due to their increased factory front ride height. To properly level a Rebel or Ram equipped with the factory Off Road Package, please select our Basic or Advanced Lift Package, which includes the required front spacers along with adjustable front and rear links.
For additional information on leveling Rebel and Off Road Package trucks, please see Customer Support Q001 – Ram Rebel / Off Road Package Leveling.
2019 Ram 1500 Classic: This model uses the previous-generation air suspension. Please select our 2016-2018 Ram 1500 adjustable links.
How they work
Revel Links trigger a change in voltage within Ram truck's factory air suspension system. When the length of links is shortened on the front and lengthened on the rear, the truck's onboard computer registers a ride height below factory settings and compensates by generating an additional 2.5" of lift. Sounds complicated, but it's actually really simple.
How they are made

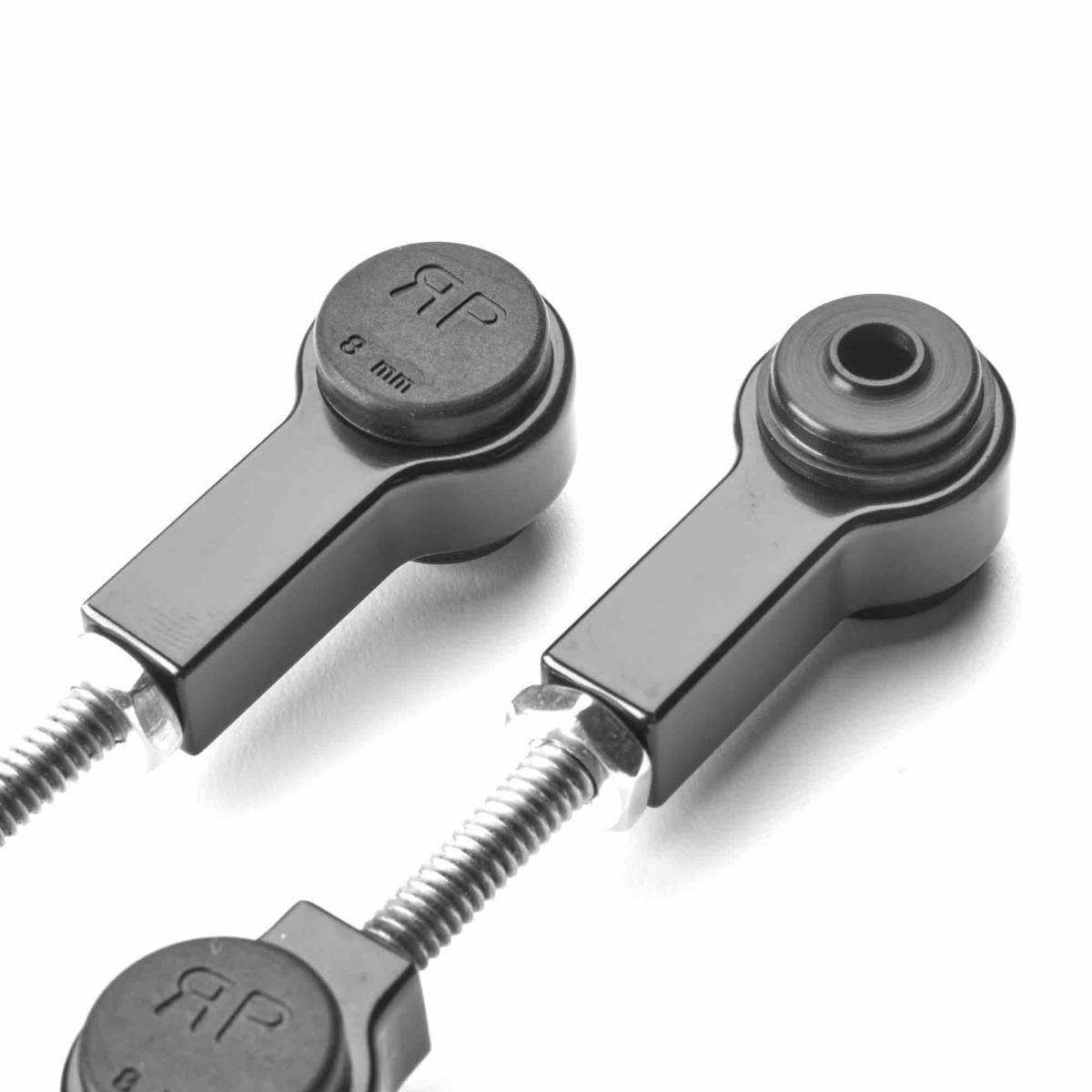

Revel Links are made from aluminum with a molded silicone coupler and are manufactured using CNC technology to achieve optimal performance and reliability.
Disclaimer
In order to achieve maximum lift and provide enough lifting capability an initial lift will occur at the links maximum setting. All measurements should be based on the front.
Please read all instructions and contact our team with any questions prior to installation. If in doubt, please have your links installed by a licensed mechanic. Lifting above 2.5" may result in a payload warning and restrict the use of the off-road 2 suspension setting. An alignment may be required to maximize performance of the links when using off-road 2 as your normal ride height. Revel Performance or its suppliers will not be held liable for any loss or injury due to improper installation.
Installation Instructions can be downloaded <here>
For Questions? Check out our FAQ
